Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.

DR 5

Article number: 11625701 / EAN: 7611034121048
DR 5
  • Pulverzerstäuber DR 5 von Birchmeier - Mit Kieselgur Hühner vor Milben schützen
  • Pulverzerstäuber DR 5 von Birchmeier - Mit Kieselgur Hühner vor Milben schützen
  • Pulverzerstäuber DR 5 von Birchmeier

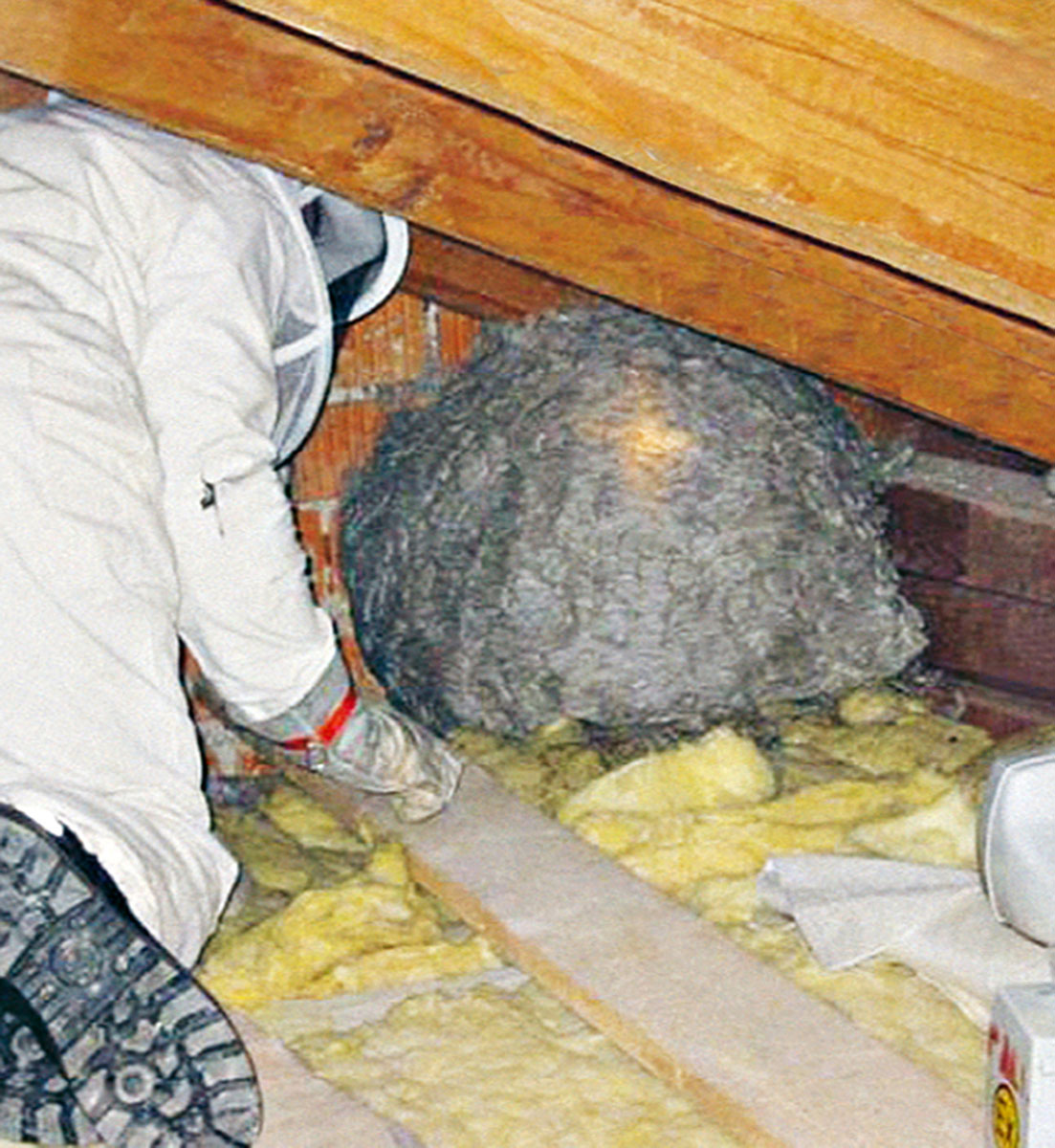

  • Pulverzerstäuber DR 5 von Birchmeier - Schädlingsbekämpfer entfernen mit insektizidem Staub Wespennest
  • Pulverzerstäuber DR 5 von Birchmeier - Urgesteinmehl stäuben

The professional powder duster with compressed air connector for a wide range of uses.

  • Transparent pressure tank with 1.5 gal filling volume
  • 1.5 gal volume is equivalent to 11 lb powder (crushed stone)
  • Especially suitable for biological use (diatomaceous earth, rock dust,primitive rock dust, algae lime powder etc.)
  • Safety and pressure relief valve 44 psi (until 2021)
  • Safety and pressure relief valve 58 psi (from 2022)
  • Powerful hand pump for pressure generation
  • Additionally fitted with a compressed air connection valve
  • Fiber reinforced and kink-resistant hose avoids powder blockages
  • With carrying belt for convenient working
  • Powder tube, o.d. .25 in
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationRock meal
Diatomaceous earth
Algae lime powder
Primitive rock dust
Form of applicationPowder
Filling capacity (Volume, l)8
Filling capacity (Weight, kg)2.5
Max. working pressure (bar)4
Nozzle typePowder tube
Spray pattern
Nozzles material
Material Device/containerPlastic
Material FittingsPlastic, brass
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)195
Width (mm)195
Height (mm)485
Weight (kg)1.6
Device typePowder unit
Special function
