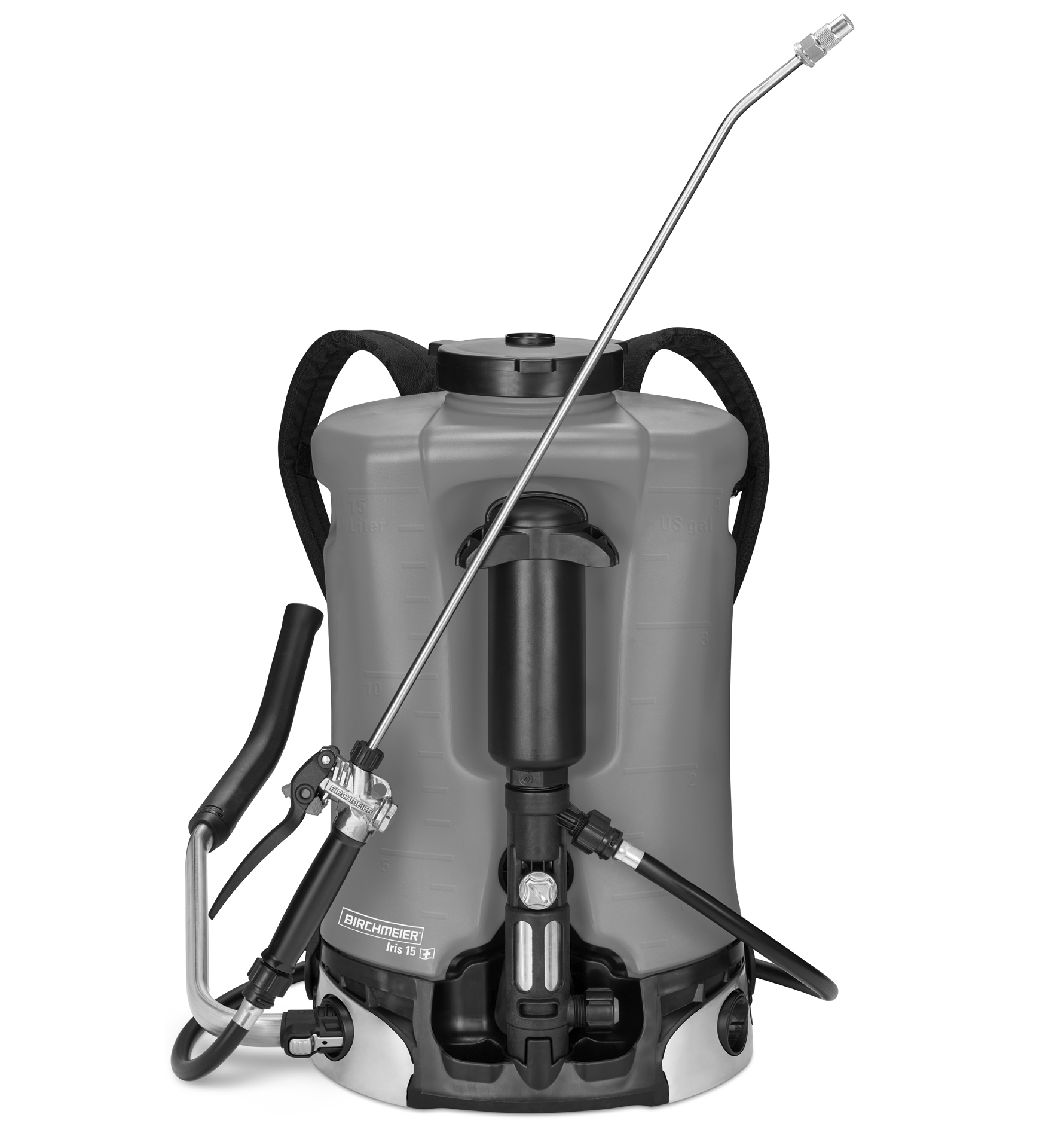

Iris 15 AT3
(Adjustable nozzle 1.3 mm / NBR)

Article number: 12004601 / EAN: 7611034010335
Iris 15 AT3

When the best gets even better.

Ergonomics

  • Ergonomically shaped tank
  • Padded S-shaped carrying belts with click system
  • New pump lever system (see pump lever)
  • Hip and chest belt (optional)



Pump lever

  • Left or right handed operation
  • Adjustable length handle
  • Working and parking position
  • Stainless steel
  • Anatomically shaped and comfortable handle



Trigger valve

  • Locking and blocking function
  • Robust brass body
  • Ergonomically shaped lever
  • Integrated fine filter
  • Retightening gland packing



Additional improvements

  • 60 cm brass spray tube
  • Fine filter inside the shaped suction bend
  • Pump fixation / tank lead through (central brass bolt)
  • Rotatable pump for left or right handed operation
  • Spray wand carrier for spray tube and Vario Gun
  • Stainless steel reinforced frame



Reliable for more than 100 years

  • Robust brass pump, mounted externally
  • 87 psi maximum pressure
  • Adjustable nozzle 1.3 mm
  • Integrated grease piston
  • Adjustable rubber piston ring
  • Simple to maintain non-return valve
  • Large filling opening with filter
  • Long life lasting and service friendly
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)15
Max. working pressure (bar)6
Nozzle typeAdjustable nozzle 1.3 mm
Spray patternAdjustable nozzle
Nozzles materialBrass
Material Device/containerPlastic
Material FittingsPlastic / brass, brass
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)237
Width (mm)438
Height (mm)542
Weight (kg)4.7
Device typeBackpack sprayer
Special function
Nozzles data
Adjustable nozzle 1.3 mm G1/4” (Accessories)Adjustable nozzle 1.3 mm G1/4” (Accessories)Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 0.8 mm, G1/4" (Accessories)Duro mist nozzle 0.8 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle50°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.0 mm, G1/4" (Accessories)Duro mist nozzle 1.0 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle60°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.3 mm, G1/4" (Accessories)Duro mist nozzle 1.3 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle75°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.5 mm, G1/4" (Accessories)Duro mist nozzle 1.5 mm, G1/4" (Accessories)Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Duro mist nozzle 1.65 mm, G1/4" (Accessories)Duro mist nozzle 1.65 mm, G1/4Technical parametersSpray patternHollow cone nozzle (for smaller shrubs and plants)Pressure range15 – 363 psiSpray angle90°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Adjustable nozzle 1.3 mm, G1/4“ brass nickelAdjustable nozzle 1.3 mm, G1/4“ brass nickelTechnical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Adjustable nozzle 1.7 mm, G1/4"Adjustable nozzle 1.7 mm, G1/4Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 145 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Herbicide Floodjet nozzle 1.6 mm, blue (Accessories)Herbicide Floodjet nozzle 1.6 mm, blue  (Accessories)Technical parametersSpray patternPressure range0 – 0 psiFlow rate gal/minpsiTo the nozzle
Anti-drift 95% fanjet nozzle, G1/4"iAnti-drift 95% fanjet nozzle, G1/4Technical parametersSpray patternPressure range0 – 0 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
