Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

Foam-Matic 5 P

Article number: 11900401 / EAN: 7611034121338
Foam-Matic 5 P

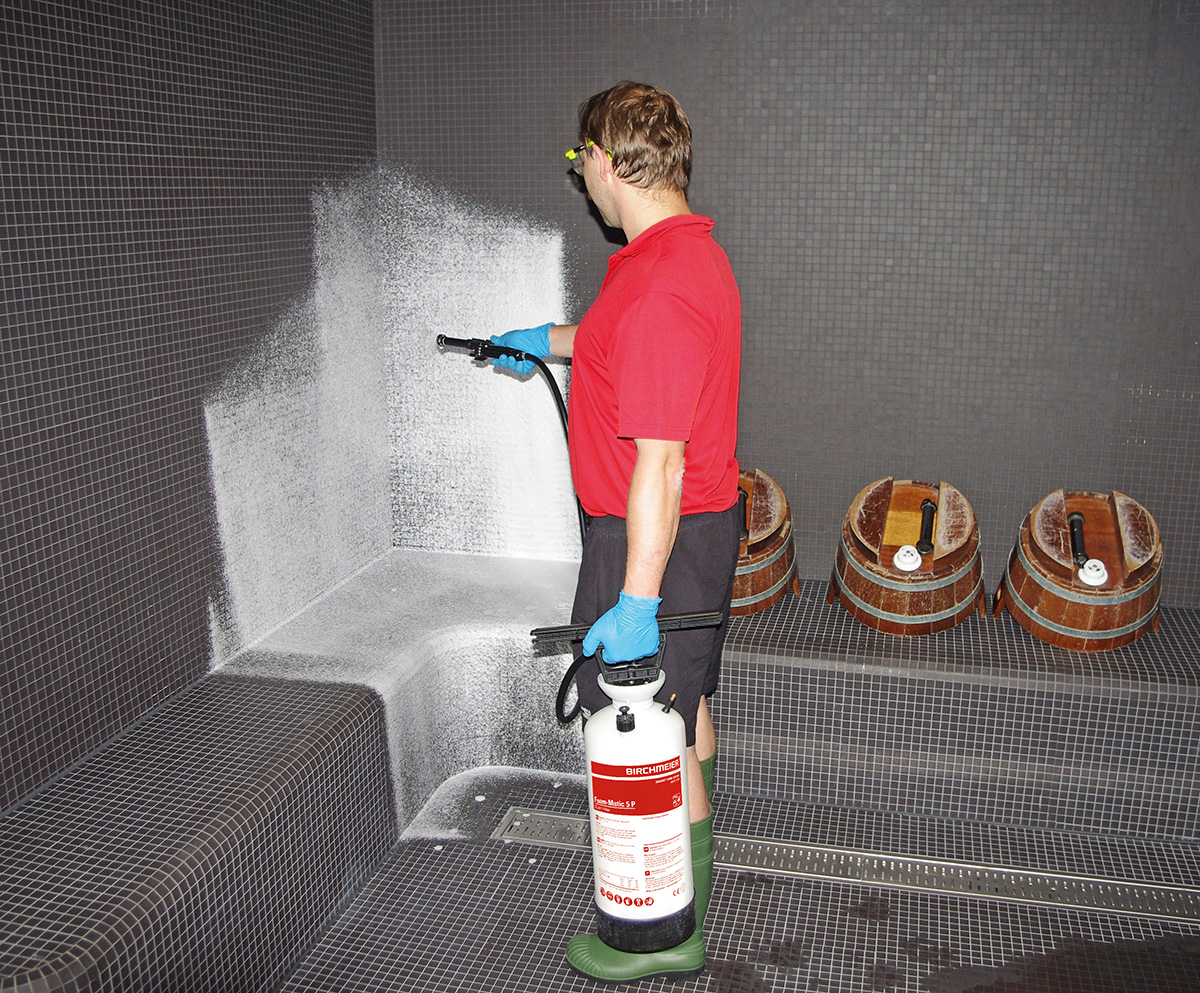

Mobile foaming: fast with excellent foam quality and high performance

  • Impact resistant Polyethylene tank with 5 litres filling, 2.5 litres air compression volume and 4 bar operating pressure
  • Special short foam gun
  • Foam gun extension 50 cm (optional)
  • High quality and high performance hand pump with two hand grip
  • Pump with stainless steel rod and sleeve guidance
  • Compressed air connection valve
  • Chemical resistant Viton gaskets
  • Safety valve
  • 1.5 m reinforced pressure hose, mounted on the top of the sprayer
  • Translucent 7.5 litres tank with 5 litres & 1.5 US Gal indication
  • Large filling opening with integrated funnel
Read more

Compare Add to wish list
Technical data
Chemical resistanceFor use with diluted acids, weak alkalis, hypochlochrites.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationAcids
Disinfection
Form of applicationFoam
Filling capacity (Volume, l)5
Max. working pressure (bar)4
Nozzle typeFoam tube
Spray patternFanjet nozzle
Nozzles materialPlastic, stainless steel
Material Device/containerPlastic
Material FittingsPlastic
Fitting connectorsscrew fitting
Stress classVery heavy duty
Device typeCompression foamer plastic
Special functionGaskets Viton
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Foam tube assy. Foam-Matic 5 PFoam tube assy. Foam-Matic 5 PTechnical parametersSpray patternPressure range0 – 0 psiTo the nozzle
AccessoriesSpare partsVideo / LeafletInstructionsReviews
DownloadsAccessories and spare parts
Videos
DownloadsLeafletSprayers and foamers for use for HACCPThe correct colour for your application
ManualsOperating Manual
VideoCompressed air valve disassembly / assembly
