Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.

Garden Star 5

Article number: 11859201 / EAN: 7611034011257
Garden Star 5
  • 5-Liter Sprühgerät Garden Star 5 von Birchmeier zum Besprühen von Balkonpflanzen, Kübelpflanzen, Hortensien
  • 5-Liter Sprühgerät Garden Star 5 von Birchmeier zum Besprühen von Balkonpflanzen, Kübelpflanzen

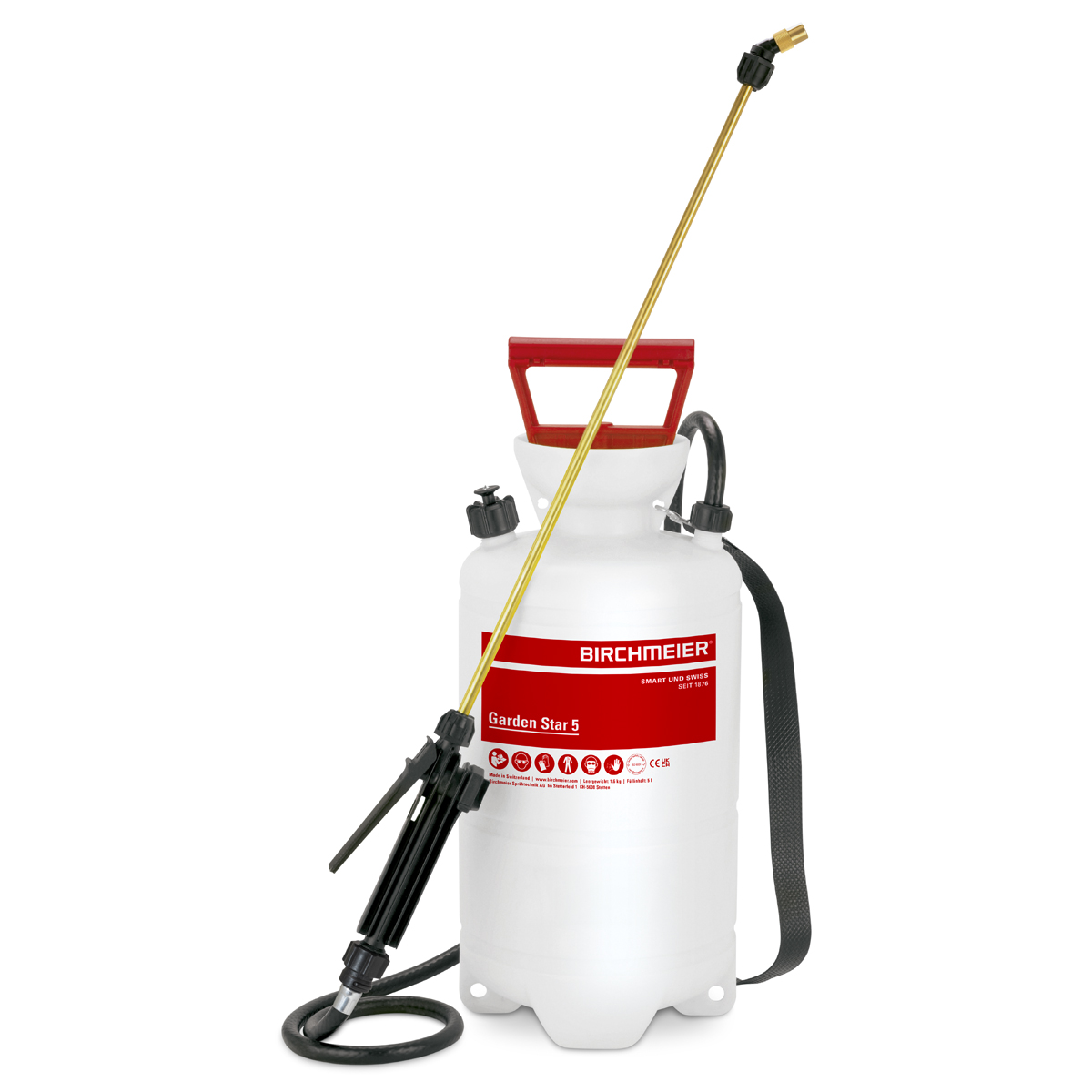

The classic, a robust, simple compression sprayer for hobby gardeners.

  • Robust plastic tank with 5 ltr. filling volume (Tank volume 8.2 ltr.)
  • 3 bar operating pressure
  • Integrated filling funnel and safety valve
  • Light weight plastic trigger
  • Robust 50 cm brass spray lance
  • Adjustable brass nozzle
  • Combined pump- and carrying handle with spray lance holder
  • Simple plug-in system
  • With carrying belt
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
Biological agents
Plant protection
Form of applicationLiquid
Filling capacity (Volume, l)5
Max. working pressure (bar)3
Nozzle typeAdjustable nozzle 1.3 mm
Spray patternAdjustable nozzle
Nozzles materialPlastic, brass
Material Device/containerPlastic
Material FittingsPlastic, brass
Fitting connectorscompression fitting
Stress classStandard duty
Length (mm)196
Width (mm)196
Height (mm)485
Weight (kg)1.86
Device typeCompression sprayer plastic
Special function
Nozzles data
Adjustable nozzle 1.3 mm, G1/4”Adjustable nozzle 1.3 mm, G1/4”Technical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 44 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
To the nozzle
Pump red 1.4104 PP NBR (Accessories)Pump red 1.4104 PP NBR (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle

No videos available.

DownloadsGarden range
Safety regulationsSafety regulations
