Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

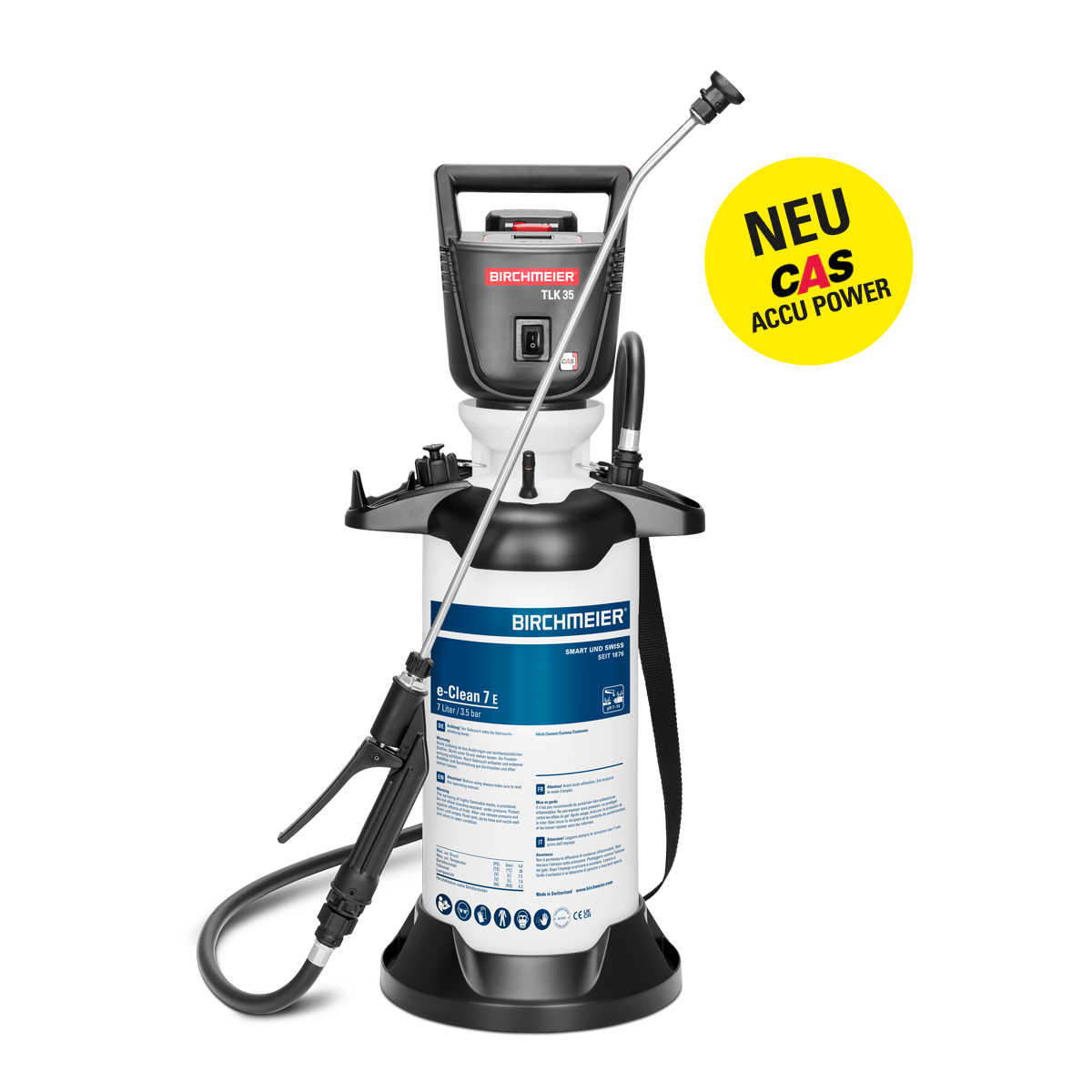

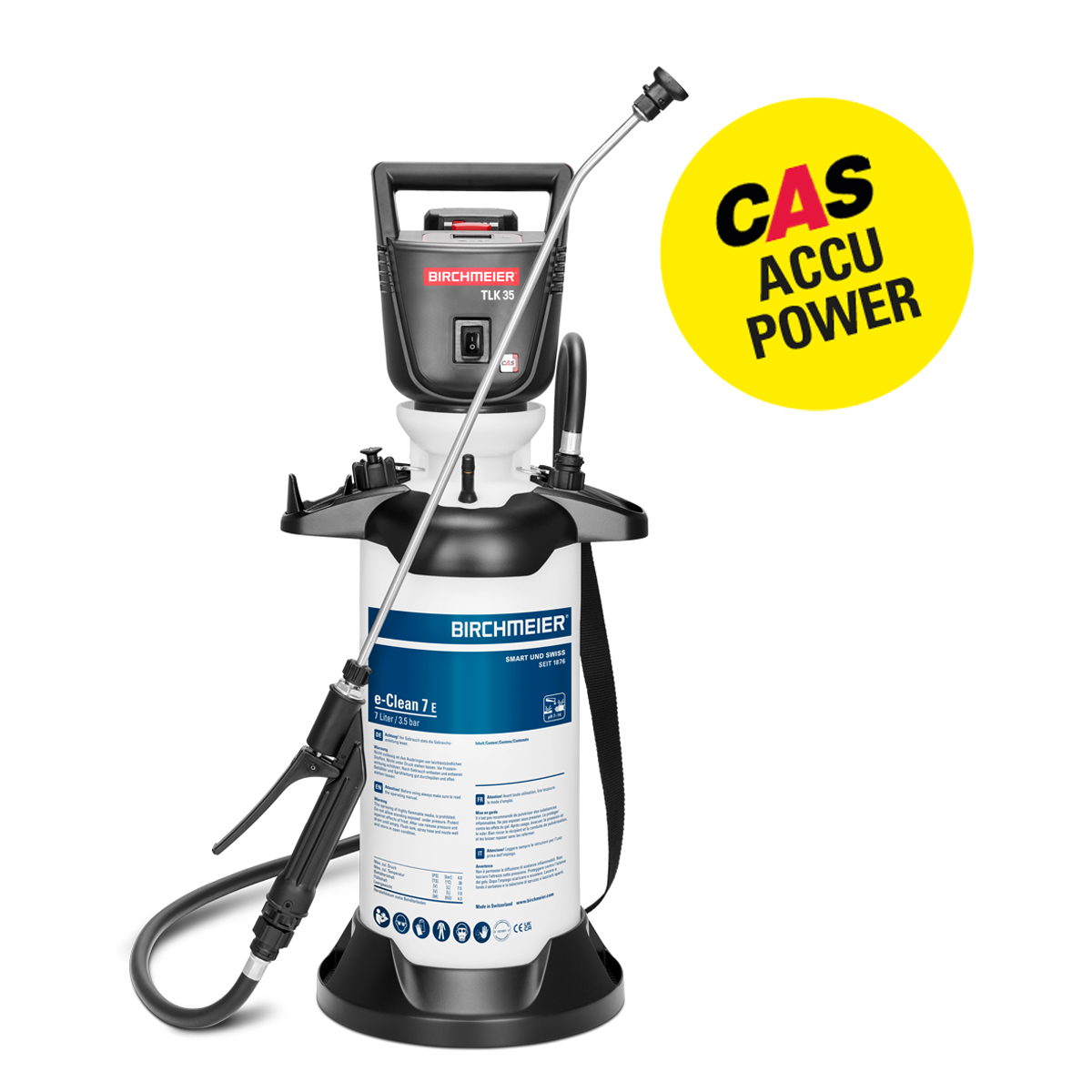

e-Clean 7 E (CAS with battery pack, with charger)

Article number: 12199001 / EAN: 7611034056784
e-Clean 7 E (CAS with battery pack, with charger)

Top quality compression sprayer with metal parts of stainless steel for spraying and foaming for professional cleaning and disinfection

  • Battery compressor TLK 35 with CAS battery pack (Cordless Alliance System)
  • 18 V Li-Ion power / 2.0 Ah, with up to 200 min / 70 l operating time at 2.0 bar
  • Continuous spraying without manual pumping
  • Plastic tank with 7.0 l capacity
  • Vertical and horizontal spray tube holder
  • Stable base
  • Operating pressure adjustable from 0.5 – 3.5 bar for optimal spray pattern
  • Chemical resistant EPDM gaskets
  • Rotating plastic fanjet nozzle for surface wetting
  • Compressor mount
  • Quick-change system for battery pack
  • Quick charger
  • Pressure relief valve and integrated filling funnel
  • Filling scale in liters and gallons
  • Kink-resistant hose
  • High nozzle quality for best spraying effect
  • Not for spraying pesticides
Read more

Technical data
Chemical resistanceNot suitable for formic acid, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.For use with diluted alkalines and specific acids (for example acetic acid).Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.Suitable for disinfection
ApplicationWater
Alkalis
Disinfection
Form of applicationLiquid
Filling capacity (Volume, l)7
Max. working pressure (bar)3.5
Nozzle typeFanjet nozzle TPU 8002 PP
Spray patternFanjet nozzle
Nozzles materialPlastic
Material Device/containerPlastic
Material FittingsPlastic, stainless steel
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)250
Width (mm)300
Height (mm)680
Weight (kg)4.3
Device typeBattery sprayer
Special functionBattery unit 18 VGaskets EPDMElectronic pressure regulationSuitable for disinfection
Nozzles data
Fanjet nozzle G1/4"i, TPU 8002 PP EPDM (grey)Fanjet nozzle G1/4Technical parametersSpray patternPressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
