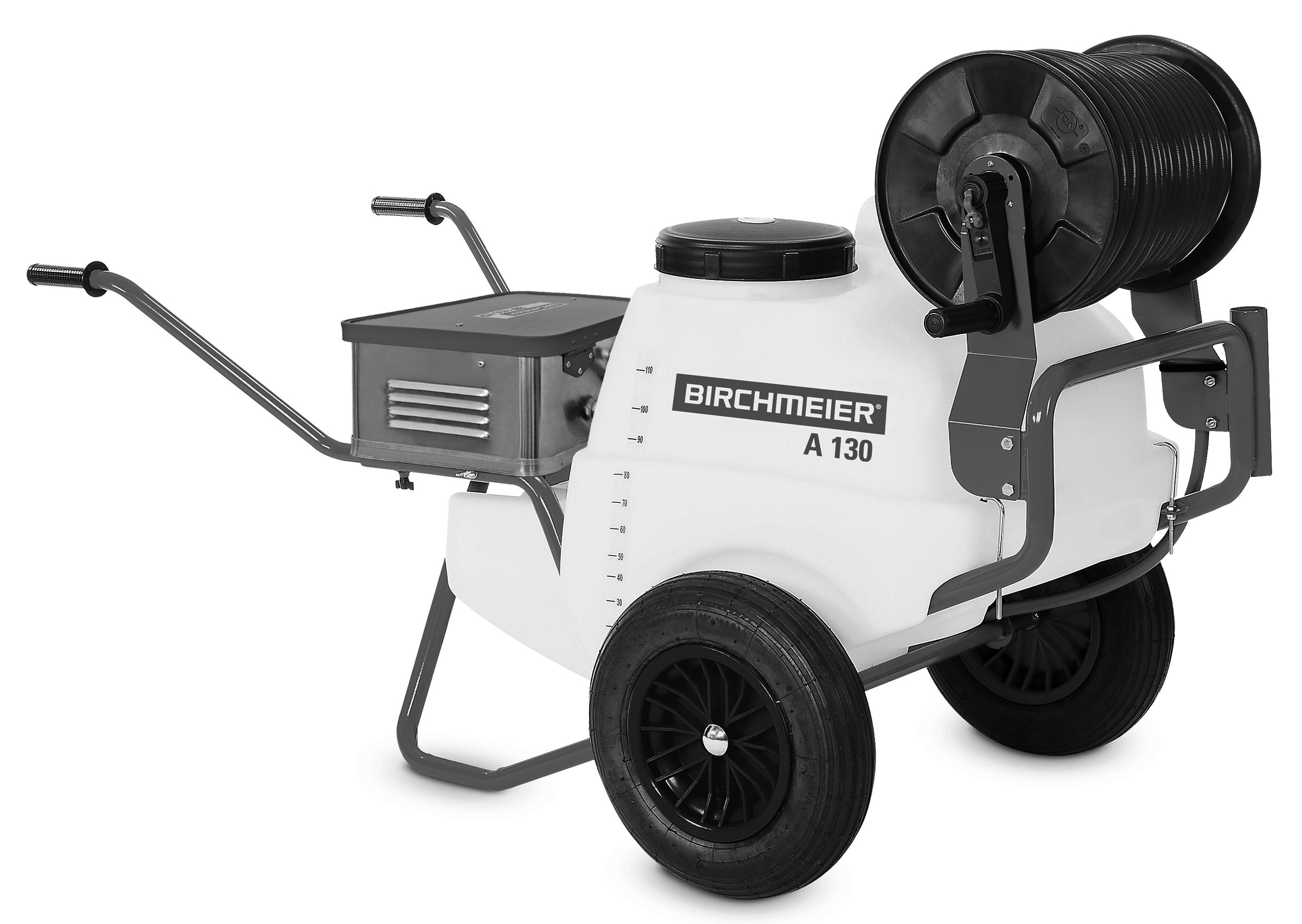

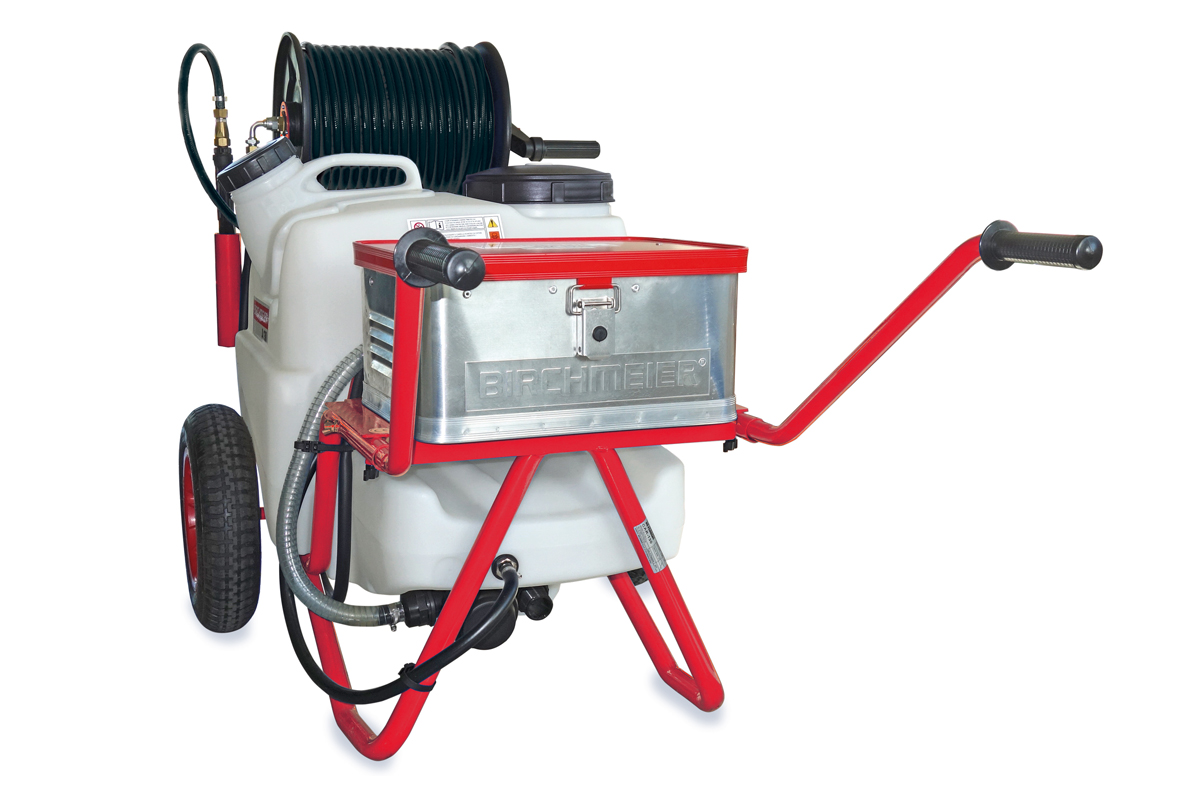

A 130 battery wheelbarrow sprayer

Article number: 12006101 / EAN: 7611034210841
A 130 AZ1 battery wheelbarrow sprayer
  • Akku-Karrenspritze 130 Liter, Taspo Award
  • Akku-Karrenspritze 130 Liter

Powerful and mobile with battery engine

The wheelbarrow sprayer A 130 allow mobile and large-area applications, when it comes to professional spraying for in- and outdoor areas. The pressure can be adjusted continously from 1 - 10 bar. The units can be completed with a large range of accessories.

Configure your unit!

Three proven sprying settings (long distance, power or high distance spraying set)

Various range of accessories

Smaller version with 75 litres tank

Pump engine as petrol or electric version available

Convincing performance features!

  • Transparent tank with large filling opening
  • External suction filter, which can be cleaned easily
  • Removable 4.5 litre fresh water tank with spout
  • Hose winch with 50 m hose and locking
  • Hydraulic agitator, optional to switch on
  • Optimal center of gravity due to the low situated tank



Various applications

  • Fruit trees
  • Vegetable- and mixed cultivations
  • Communal amenities
  • Surroundings sensitive to noise (cemeteries, hospitals, schools)
  • Indoor plantages, greenhouses



Battery performance

  • 1 - 10 bar
  • 14.5 h / 1300 litres (at 2 bar and 1.5 l /min)
  • Li-Ion 25.2 V / 8.7 Ah
  • Charging time < 2.5 h
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)130
Max. working pressure (bar)10
Nozzle type
Spray pattern
Nozzles material
Material Device/containerPlastic
Material Fittings
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)950
Width (mm)790
Height (mm)1050
Weight (kg)48
Device typeBattery sprayer
Special functionBattery unit 25 V
