Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

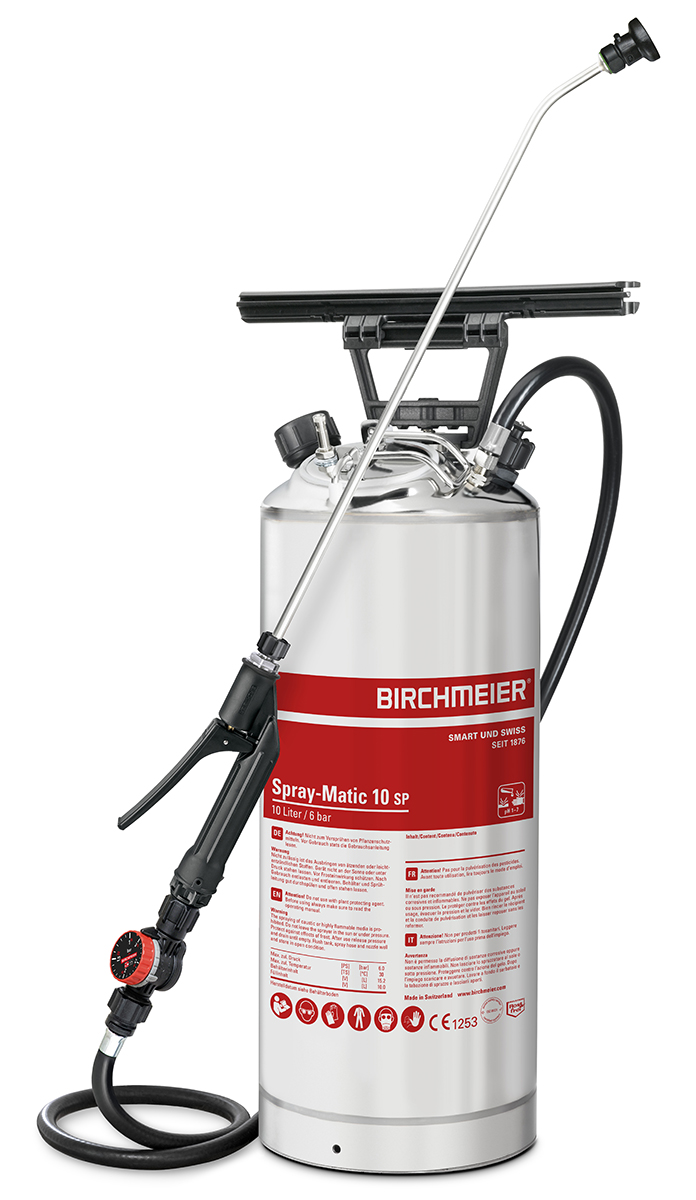

Spray-Matic 10 SP with stainless steel hand pump and compressed-air connection

Article number: 11380001 / EAN: 7611034122045
Spray-Matic 10 SP with stainless steel hand pump and compressed-air union
  • 10-Liter Sprühgerät Spray-Matic SP von Birchmeier, Edelstahlgehäuse
  • 10-Liter Edelstahl Sprühgerät Spray-Matic SP von Birchmeier, Reinigung KFZ, Werkstatt, Garage
  • 10-Liter Edelstahl Sprühgerät Spray-Matic SP von Birchmeier, Reinigung KFZ, Werkstatt, Garage

Stainless steel compression sprayer with stainless steel hand pump and compressed-air connection

  • Adjustable pressure control valve PR 3 P1 (1-3 bar)
  • Tank made of stainless steel with internal plastic protection, filling capacity 10 litres
  • Operating pressure 6 bar
  • Chemical resistant Viton gaskets
  • Security valve
  • Separate, large filling opening
  • Hose coupling fixed on container head
  • Hand pump made of stainless steel
  • Compressed air valve
  • Pressure gauge
  • Piston valve assembly with integrated fine filter
  • Robust piston valve assembly made of polypropylene and stainless steel
  • CE and TÜV-GS proved
Read more

Compare Add to wish list
Technical data
Chemical resistanceFor use with diluted acids, weak alkalis, hypochlochrites.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationWater
Antirust
Impregnation
Acids
Formwork release oil / Release agents
Disinfection
Form of applicationLiquid
Filling capacity (Volume, l)10
Max. working pressure (bar)6
Nozzle typeFanjet nozzle TPU 8002 PP
Spray patternFanjet nozzle
Nozzles materialPlastic, plastic / stainless steel
Material Device/containerStainless steel
Material FittingsPlastic, stainless steel
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)240
Width (mm)240
Height (mm)580
Weight (kg)6.2
Device typeCompression sprayer stainless steel
Special functionPE Tank InsideGaskets VitonAdjustable pressure control valve
Nozzles data
Show:All nozzlesStandard nozzleCompatible nozzles
Fanjet nozzle G1/4"i, TPU 8002 PP Viton (grey)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Spray tube 50 cm curved, stainless steel, with adjustable connection, G1/4“e on both sides (Accessories)Spray tube 50 cm curved, stainless steel, with adjustable connection, G1/4“e on both sides (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Pump assy., stainless steel, Viton (Accessories)Pump assy., stainless steel, Viton (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Pressure control valve PR 3 P1, G1/2" (14 - 44 psi) Pressure control valve PR 3 P1, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Adjustable nozzle 1.3 mm, G1/4“ brass nickelAdjustable nozzle 1.3 mm, G1/4“ brass nickelTechnical parametersSpray patternAdjustable nozzle (adjustable from spraying to jet)Pressure range15 – 363 psiFlow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8001 VS, Viton (orange)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Filler cap with reducing valve brass nickel-plated (Accessories)Filler cap with reducing valve brass nickel-plated (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Fanjet nozzle G1/4"i, XR 80015 VS, Viton (green)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Stainless steel hand-cart H1 (Accessories)Stainless steel hand-cart H1 (Accessories)Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Fanjet nozzle G1/4"i, XR 8002 VS, Viton (yellow)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8003 VS, Viton (blue)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8004 VS, Viton (red)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8005 VS, Viton (brown)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8006 VS, Viton (grey)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8008 VS, Viton (white)Fanjet nozzle G1/4Technical parametersSpray patternFanjet nozzle (for surfaces, lawns, plates)Pressure range15 – 363 psiSpray angle80°Flow rate gal/minpsiDroplet size depending on pressure
Pressure (psi)152944587387102116131145
Spraying
To the nozzle
Pressure control valve PR 3, G1/2" (14 - 44 psi) (Accessories)Pressure control valve PR 3, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
Pressure control valve PR 3 P1, G1/2" (14 - 44 psi) Pressure control valve PR 3 P1, G1/2Technical parametersSpray patternPressure range0 – 0 psiTo the nozzle
