Important:
Because of differences in conditions (concentration, temperature, pressure etc.) and composition of chemicals / fluids the recommended colour coding green/red/blue/black are only guidlines and should not be taken as binding. For these reasons we cannot give any guarantees as to the correctness of our recommendations in individual cases.
Back

AS 1200 Battery spray blower

Article number: 12052101 / EAN: 7611034210957
AS 1200
  • Akku Sprühgebläse Birchmeier Auszeichnung Demopark
  • Akku Sprühgebläse Birchmeier Auszeichnung oega
  • Akku Sprühgebläse Birchmeier Auszeichnung Four Oaks
  • Akku Sprühgebläse Birchmeier Auszeichnung Galabau Messe Nürnberg

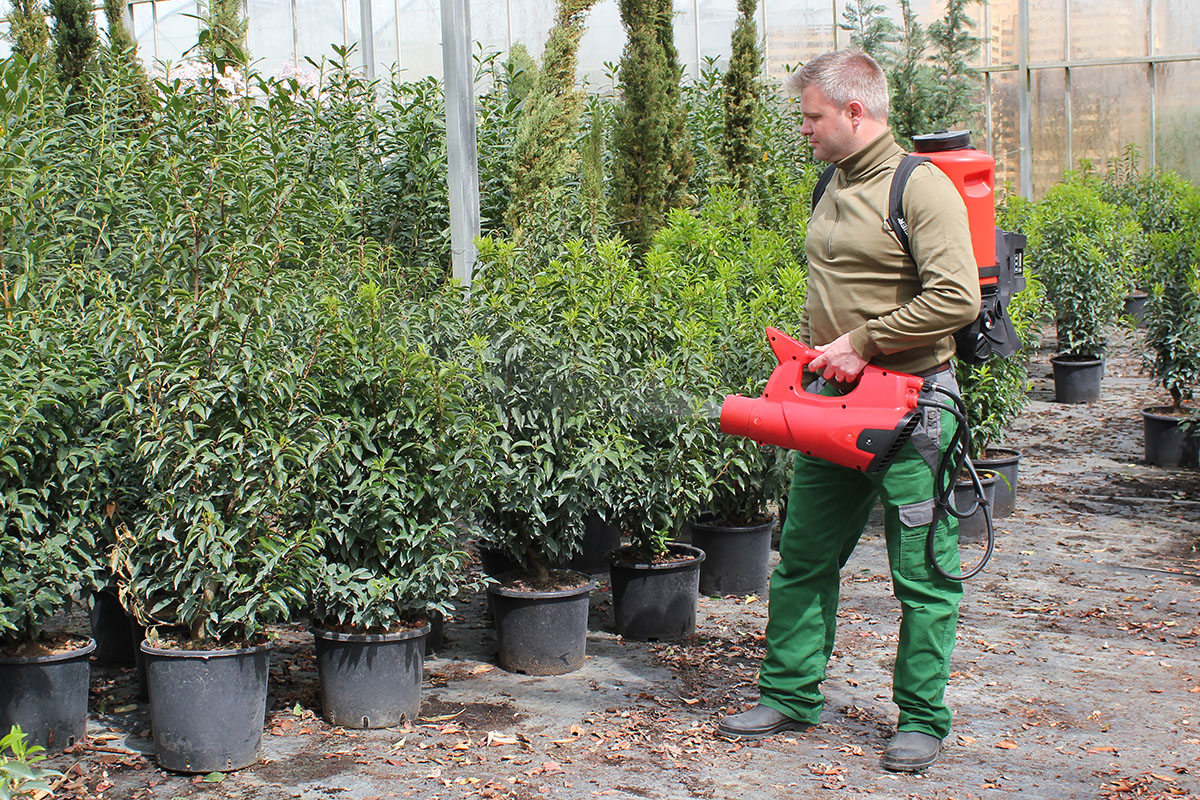

  • Akku Sprühgebläse Birchmeier, luftunterstütztes Sprühen
  • Akku Sprühgebläse Birchmeier, luftunterstütztes Sprühen
  • Akku Sprühgebläse Birchmeier, luftunterstütztes Sprühen
  • Akku Sprühgebläse Birchmeier, luftunterstütztes Sprühen
  • Akku Sprühgebläse Birchmeier, luftunterstütztes Sprühen
  • Akku Sprühgebläse Birchmeier, luftunterstütztes Sprühen
  • Akku Sprühgebläse Birchmeier, luftunterstütztes Sprühen
  • Akku Sprühgebläse Birchmeier, luftunterstütztes Sprühen

Spraying with even greater efficiency – never a dry leaf again

Air supported spraying with «Accu-Power»

(only in combination with REC 15 ABZ and REX 15 AZ1)

The new technology from Birchmeier. A new dimension to plant protection: Spraying with pressure-controlled liquid supply in an air stream. A large spraying range can be achieved with pre-spraying and a variable air stream. A minimum loss of spray solution and a long reach is the result. The air stream also causes the targeted leaves to move, providing optimum wetting and penetration of foliage and shrubbery. The AS 1200, powered by an additional battery, is combined with a sprayer from the «Accu-Power» line. The spray blower is extremely powerful, easy to operate and impressively quiet.



Makes work easier

By means of an adjustable air stream and pressure-controlled pre-spraying, the AS 1200 achieves maximum fluid transportation over the required distance.

  • Adjustable air stream
  • Specified pre-spraying
  • Configurable application rate
  • Evenly distributed droplet spectrum
  • Optimum target penetration
  • High level of target area efficiency
  • Improved use of active ingredients



Powerful yet quiet performance

  • Up to 3.5 hours of rechargeable battery power
  • Adjustable airspeeds up to 65 m/s
  • Additional power level
  • Up to 13 metres in range
  • Low noise emission
  • High energy efficiency



Added value by combining with the
«Accu-Power» series

The clever concept: the AS 1200 with the existing Birchmeier battery-powered sprayer for even greater benefits. The ideal duo for comfortable and power-saving working with greater freedom of movement.

Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Max. working pressure (bar)10
Nozzle typeAnti drift hollow cone AITXA 8003 VK
Anti drift hollow cone AITXA 8002 VK
Anti drift hollow cone AITXA 8001 VK
Spray patternHollow cone nozzle
Nozzles materialPlastic / Ceramics
Material Device/containerPlastic
Material Fittings
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)464
Width (mm)160
Height (mm)304
Weight (kg)3.5
Device typeBattery spray blower
Special function
Nozzles data
Anti drift hollow cone AITXA 8002 VKAnti drift hollow cone AITXA 8002 VKTechnical parametersSpray patternHollow cone nozzlePressure range1 – 10 barFlow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Anti drift hollow cone AITXA 8003 VKAnti drift hollow cone AITXA 8003 VKTechnical parametersSpray patternHollow cone nozzlePressure range1 – 10 barFlow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Anti drift hollow cone nozzle AITXA 8001 VKAnti drift hollow cone nozzle AITXA 8001 VKTechnical parametersSpray patternHollow cone nozzlePressure range1 – 10 barFlow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Videos
DownloadsLeaflet
Safety regulationsSafety regulations
