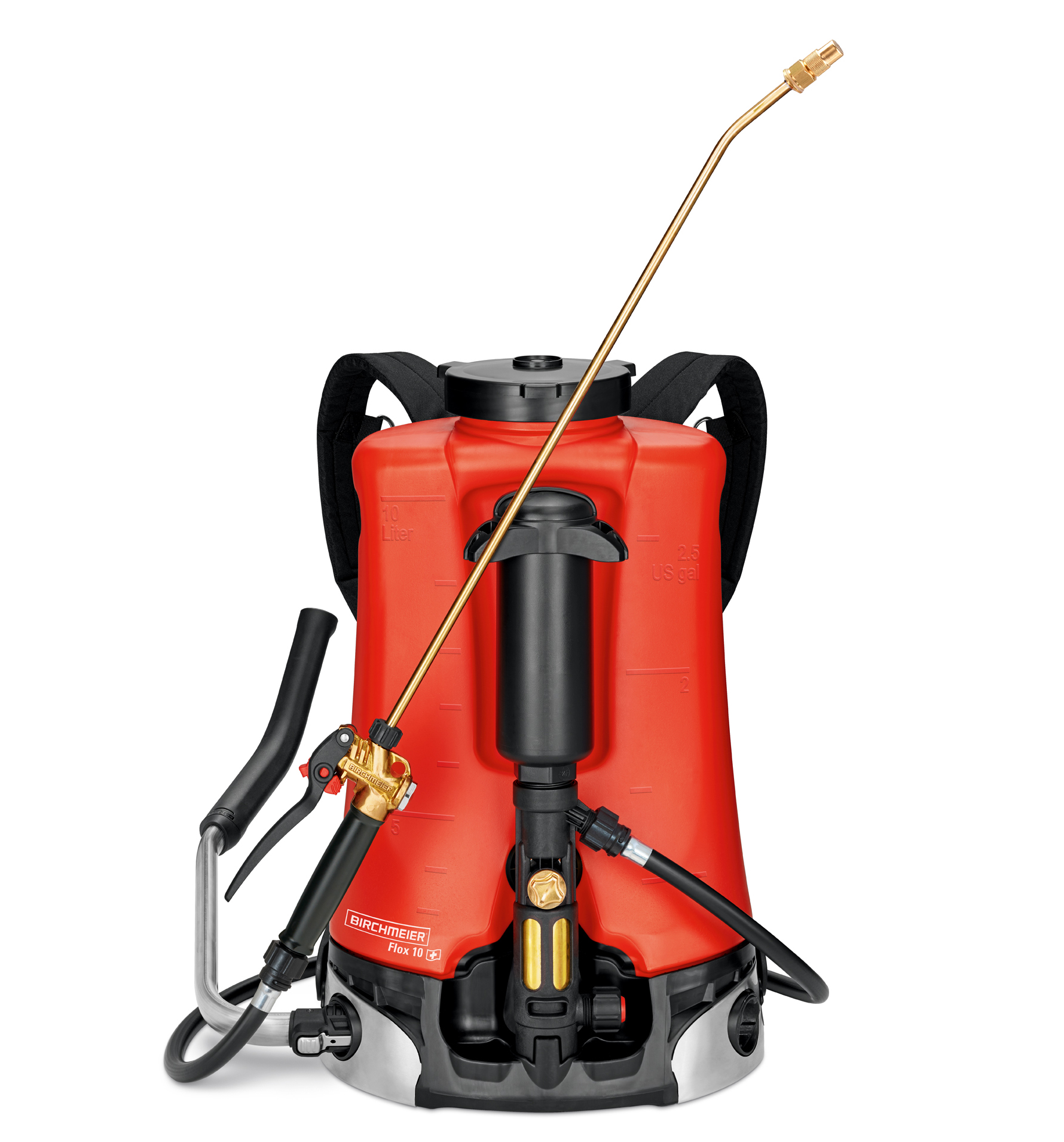

Flox 10 AT3
(Adjustable nozzle 1.3 mm / NBR)

Article number: 10956101AT3 / EAN: 7611034010328
Flox 10 AT3

When the best gets even better.

Ergonomics

  • Ergonomically shaped tank
  • Padded S-shaped carrying belts with click system
  • New pump lever system (see pump lever)
  • Hip and chest belt (optional)



Pump lever

  • Left or right handed operation
  • Adjustable length handle
  • Working and parking position
  • Stainless steel
  • Anatomically shaped and comfortable handle



Trigger valve

  • Locking and blocking function
  • Robust brass body
  • Ergonomically shaped lever
  • Integrated fine filter
  • Retightening gland packing



Additional improvements

  • 60 cm brass spray tube
  • Fine filter inside the shaped suction bend
  • Pump fixation / tank lead through (central brass bolt)
  • Rotatable pump for left or right handed operation
  • Spray wand carrier for spray tube and Vario Gun
  • Stainless steel reinforced frame



Reliable for more than 100 years

  • Robust brass pump, mounted externally
  • 87 psi maximum pressure
  • Adjustable nozzle 1.3 mm
  • Integrated grease piston
  • Adjustable rubber piston ring
  • Simple to maintain non-return valve
  • Large filling opening with filter
  • Long life lasting and service friendly
Read more

Technical data
Chemical resistanceFor use with the most plant protection products.Not suitable for formic acid, acetic acids, sodium / potassium hydroxides. In addition stainless steel units: no hydrochlonic acid, nitric acid, sulfuric acid or hydrofluoric acid, ammonia, peroxides and other corrosive media.Not suitable for mineral oil based and vegetable oils, hypochlorites, limonenes, terpenes.Not suitable for non-polar solvents, ketones, peroxides, chlorine, acids and alkalines.
ApplicationPesticide
Water
Biological agents
Plant protection
Herbicides
Form of applicationLiquid
Filling capacity (Volume, l)10
Max. working pressure (bar)6
Nozzle typeAdjustable nozzle 1.3 mm
Spray patternAdjustable nozzle
Nozzles materialBrass
Material Device/containerPlastic
Material FittingsPlastic / brass, brass
Fitting connectorsscrew fitting
Stress classVery heavy duty
Length (mm)237
Width (mm)438
Height (mm)540
Weight (kg)4.6
Device typeBackpack sprayer
Special function
Nozzles data
Adjustable nozzle 1.3 mm G1/4”Adjustable nozzle 1.3 mm G1/4”Technical parametersSpray patternAdjustable nozzlePressure range1 – 10 barFlow rate l/minDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Trigger brass LB, G1/2" Viton, 10 bar Trigger brass LB, G1/2Technical parametersSpray patternPressure range – barTo the nozzle
Duro mist nozzle 0.8 mmDuro mist nozzle 0.8 mmTechnical parametersSpray patternHollow cone nozzlePressure range1 – 25 barSpray angle50°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Duro mist nozzle 1.0 mmDuro mist nozzle 1.0 mmTechnical parametersSpray patternHollow cone nozzlePressure range1 – 25 barSpray angle60°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Duro mist nozzle 1.3 mmDuro mist nozzle 1.3 mmTechnical parametersSpray patternHollow cone nozzlePressure range1 – 25 barSpray angle75°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Duro mist nozzle 1.5 mmDuro mist nozzle 1.5 mmTechnical parametersSpray patternHollow cone nozzlePressure range1 – 25 barSpray angle80°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Duro mist nozzle 1.65 mmDuro mist nozzle 1.65 mmTechnical parametersSpray patternHollow cone nozzlePressure range1 – 25 barSpray angle90°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Adjustable nozzle 1.3 mm, G1/4“ brass niAdjustable nozzle 1.3 mm, G1/4“ brass niTechnical parametersSpray patternAdjustable nozzlePressure range1 – 25 barFlow rate l/minbarTo the nozzle
Fanjet nozzle G1/4"i, XR 8001 VS, orangeFanjet nozzle G1/4"i, XR 8001 VS, orangeTechnical parametersSpray patternFanjet nozzlePressure range1 – 25 barSpray angle80°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 80015 VS, greenFanjet nozzle G1/4"i, XR 80015 VS, greenTechnical parametersSpray patternFanjet nozzlePressure range1 – 25 barSpray angle80°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8002 VS, yellowFanjet nozzle G1/4"i, XR 8002 VS, yellowTechnical parametersSpray patternFanjet nozzlePressure range1 – 25 barSpray angle80°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8003 VS, blueFanjet nozzle G1/4"i, XR 8003 VS, blueTechnical parametersSpray patternFanjet nozzlePressure range1 – 25 barSpray angle80°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8004 VS, redFanjet nozzle G1/4Technical parametersSpray patternFanjet nozzlePressure range1 – 25 barSpray angle80°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8005 VS, brownFanjet nozzle G1/4Technical parametersSpray patternFanjet nozzlePressure range1 – 25 barSpray angle80°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8006 VS, greyFanjet nozzle G1/4Technical parametersSpray patternFanjet nozzlePressure range1 – 25 barSpray angle80°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Fanjet nozzle G1/4"i, XR 8008 VS, whiteFanjet nozzle G1/4Technical parametersSpray patternFanjet nozzlePressure range1 – 25 barSpray angle80°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Adjustable nozzle 1.7 mm G1/4"Adjustable nozzle 1.7 mm G1/4Technical parametersSpray patternAdjustable nozzlePressure range1 – 10 barFlow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Fanjet nozzle TP 8002 Ms, G1/4"iFanjet nozzle TP 8002 Ms, G1/4Technical parametersSpray patternFanjet nozzlePressure range1 – 25 barSpray angle80°Flow rate l/minbarDroplet size depending on pressure
Pressure (bar)12345678910
Spraying
To the nozzle
Herbicide Floodjet nozzle 1.6 mm, blueHerbicide Floodjet nozzle 1.6 mm, blueTechnical parametersSpray patternFanjet nozzlePressure range0.5 – 2 barFlow rate l/minbarTo the nozzle
